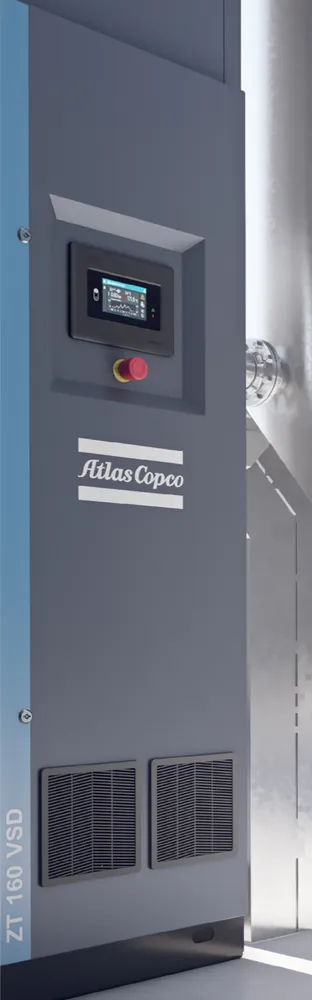

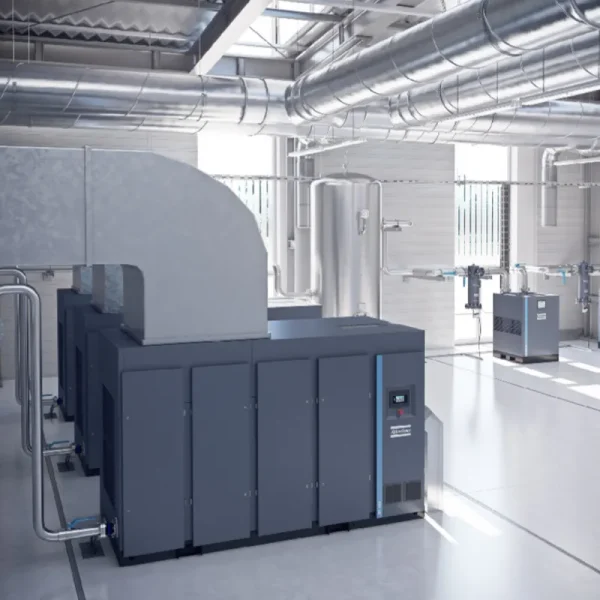

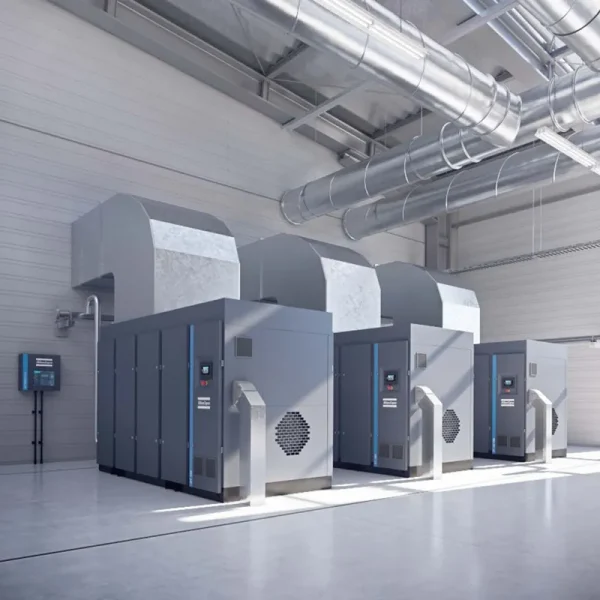

Atlas Copco ZT 90–160 VSD (FF) Oil-free Air Compressors

The shortest route to superior productivity is to minimize operational cost while maintaining an uninterrupted supply of the right quality of air. The Atlas Copco ZT 90–160 VSD (FF) Oil-free Air Compressors series is focused on effectively saving energy, ensuring product safety – only oil-free machines exclude contamination risks for 100% – and guaranteeing the utmost reliability around the clock. And not just today, but day after day, year after year, with minimal maintenance cost, few service interventions and long overhaul intervals.

Setting the standard in energy efficiency, safety and reliability

Highest reliability For 60 years, Atlas Copco Z compressors have set the benchmark for durability. They are built using long-standing internal engineering practices, and are designed and manufactured according to ISO 9001, ISO 14001, ISO 22000 & OHSAS 18001. The high-end ZT uses time-proven state-of-the-art screw technology, cooling and pulsation dampers and provides you with the highest reliability. 100% oil-free compressed air The Atlas Copco ZT 90–160 VSD (FF) Oil-free Air Compressors offers you 100% pure, clean air that complies with ISO 8573-1 CLASS 0 (2010) certification. This means zero risk of contamination; zero risk of damaged products; zero risk of losses from operational downtime; and zero risk of damaging your company’s hard-won professional reputation. Maximum energy efficiency The ZT’s superior oil-free screw elements provide the optimum combination of high Free Air Delivery (FAD) with the lowest energy consumption. Ample sized cooling, low pressure drops and an extremely efficient drive train result in the highest compressor package efficiency. The most complete package With the ZT compressor, Atlas Copco provides a superior solution without hidden costs. The totally integrated, ready-to-use package includes internal piping, coolers, motor, lubrication and control system. The Full Feature version even integrates an IMD adsorption dryer for an impeccable end product. Installation is fault-free, commissioning time is low and no external instrument air is required. You simply plug and run. Global presence – local service Our aftermarket product portfolio is designed to add maximum value for our customers by ensuring the optimum availability and reliability of their compressed air equipment with the lowest possible operating costs. We deliver this complete service guarantee through our extensive service organization, maintaining our position as leader in compressed air.

100% certified oil-free air

Atlas Copco is renowned for designing and manufacturing some of the most durable oil-free screw compressors. The ZT high-end rotary screw compressor comes out of this strong tradition. Ideal for industries where high quality oil-free air is key, the ZT offers the highest reliability and safety in combination with low energy costs.

	Food & beverage ZT air cooled oil-free air compressors provide 100% pure, clean, oil-free air for all kinds of applications in the food and beverage industry such as fermentation, packaging, aeration, transportation,filling & capping, cleaning, instrument air. Class 0 certified ZT rotary screw compressors avoid compromising the purity of your end product and ensure zero risk of contamination.

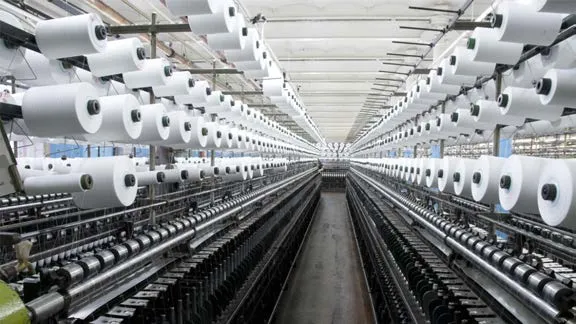

Textiles The oil-free air ZT compressors guarantee a CLASS 0 certified air quality for the highly sensitive production processes in the textile industry. This high quality air is used in a variety of textile applications such as spinning, weaving, dyeing, texturizing, winding and coning.

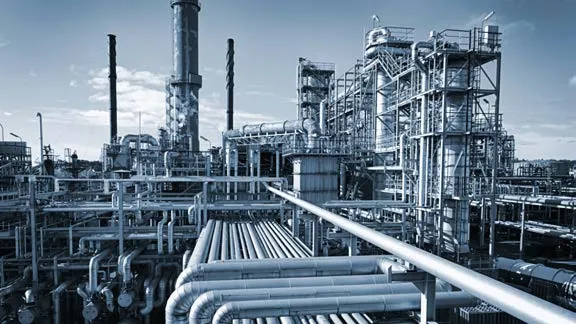

	Oil & gas Through the years, we have built up extensive experience in providing compressed air and a strong global service support for the oil & gas industry. 100% oil-free compressed air is used for control and instrument air or buffer air.

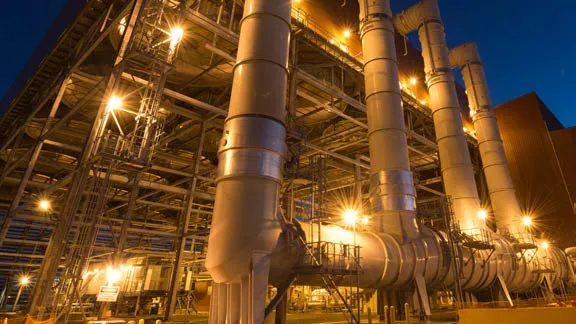

Power plants Power plants run round-the-clock to supply vital energy with a continuous supply of compressed air, critical for trouble-free continuous operation. ZT air cooled oil-free air compressors provide a reliable source of compressed air for applications such as flue gas desulphurization, oxidation air and fluidized beds.
	Pharmaceuticals Strict moisture control is a key factor in the manufacture of most pharmaceuticals. Many materials used to produce pharmaceuticals have a physical affinity for moisture, which can cause powdered material to aggregate. Other powders that are formed into a tablet under high pressures will adhere only when in a dry state. Humidity can cause a tablet to crumble or the drug to decompose and diminish in its therapeutic value. To assure consistently high-quality drugs, the presence of dry air in the processing area and machinery is therefore vital.

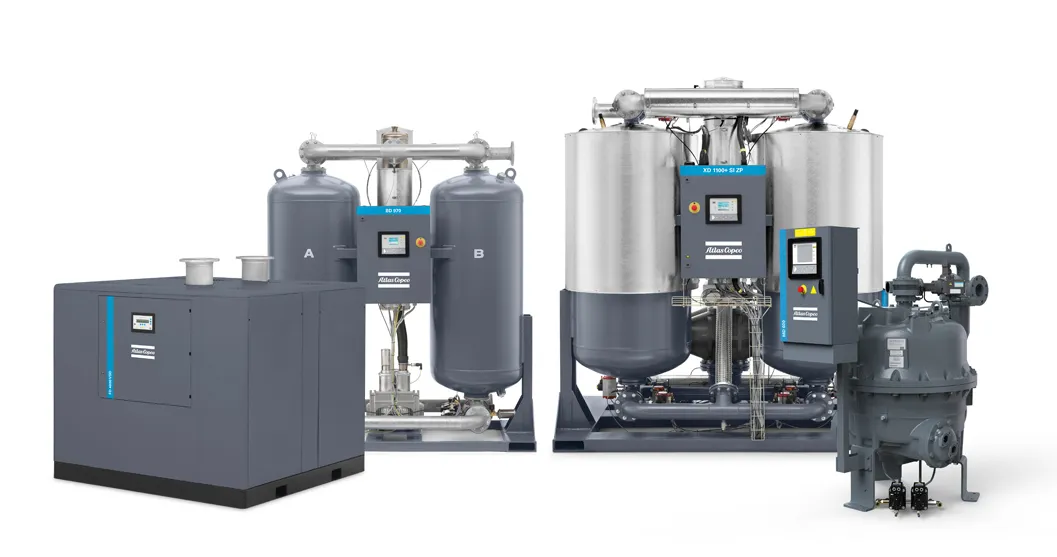

Protecting your production

Monitoring and control

How to get the most from the least

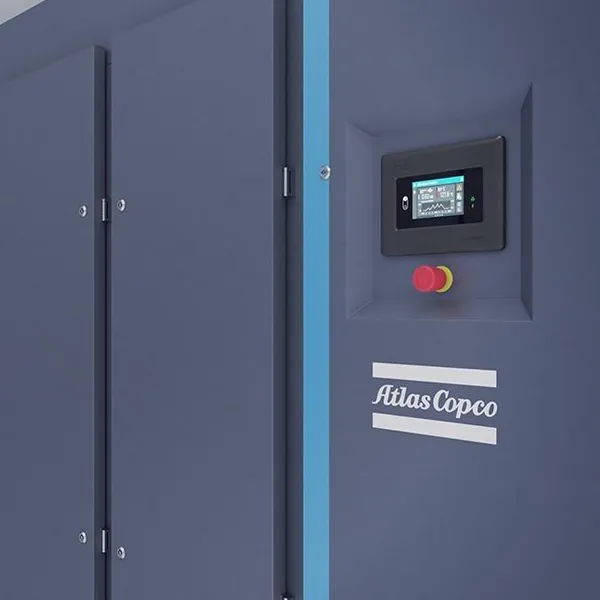

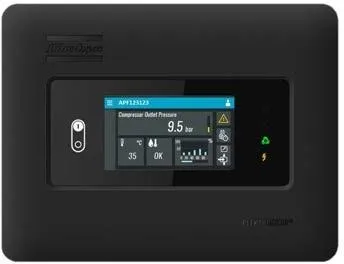

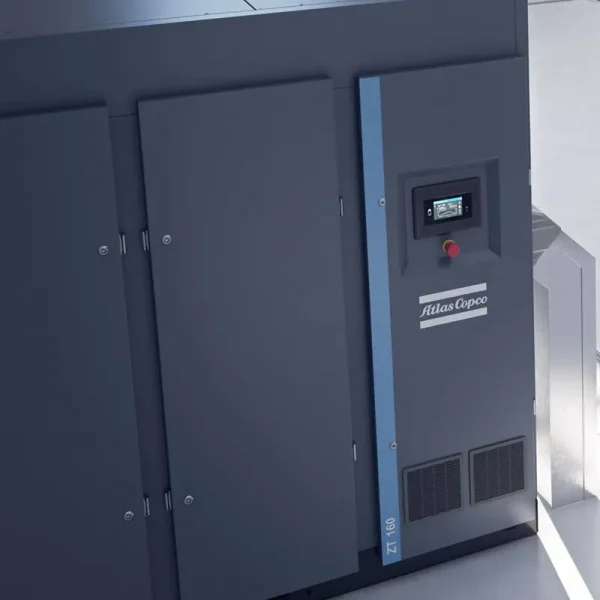

Elektronikon® MK5 Touch The Elektronikon® unit controller is specially designed to maximize the performance of your compressors and air treatment equipment under a variety of conditions. Our solutions provide you with key benefits such as increased energy efficiency, lower energy consumption, reduced maintenance times and less stress… less stress for both you and your entire air system.
	Intelligence is part of the package The full color touch display gives you an easy to understand readout of the equipment’s running conditions. Clear icons and intuitive navigation provides you fast access to all of the important settings and data. Monitoring of the equipment running conditions and maintenance status; bringing this information to your attention when needed. Operation of the equipment to deliver specifically and reliably to your compressed air needs. Built in remote control and notifications functions provided as standard, including simple to use integrated webpage. Integrated SMARTLINK Support for 31 different languages, including character based languages.

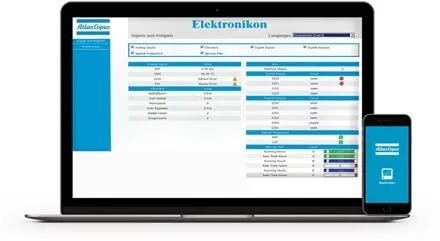

Online & mobile monitoring Monitor your machines over the ethernet with the Elektronikon® unit controller and the SMARTLINK service. Monitoring features include warning indications, compressor shut-down, sensor trending and maintenance scheduling

Flowchart ZT

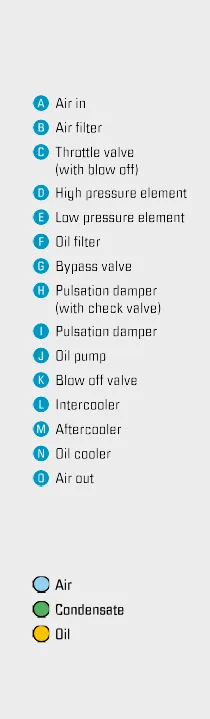

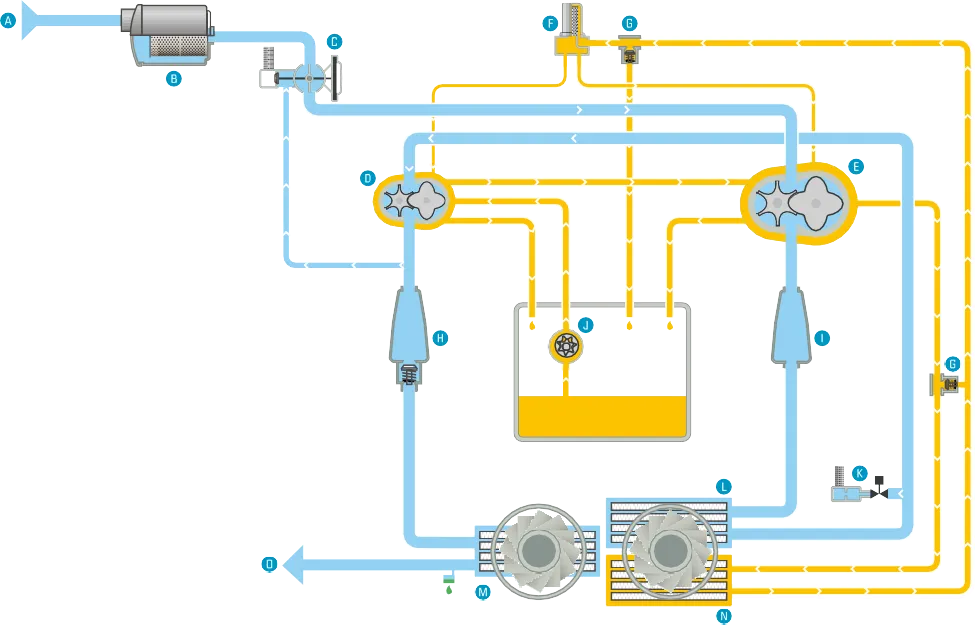

Process flow, oil flow and cooling flow – step by step

ZT 90 – 160 (VSD) Flowchart

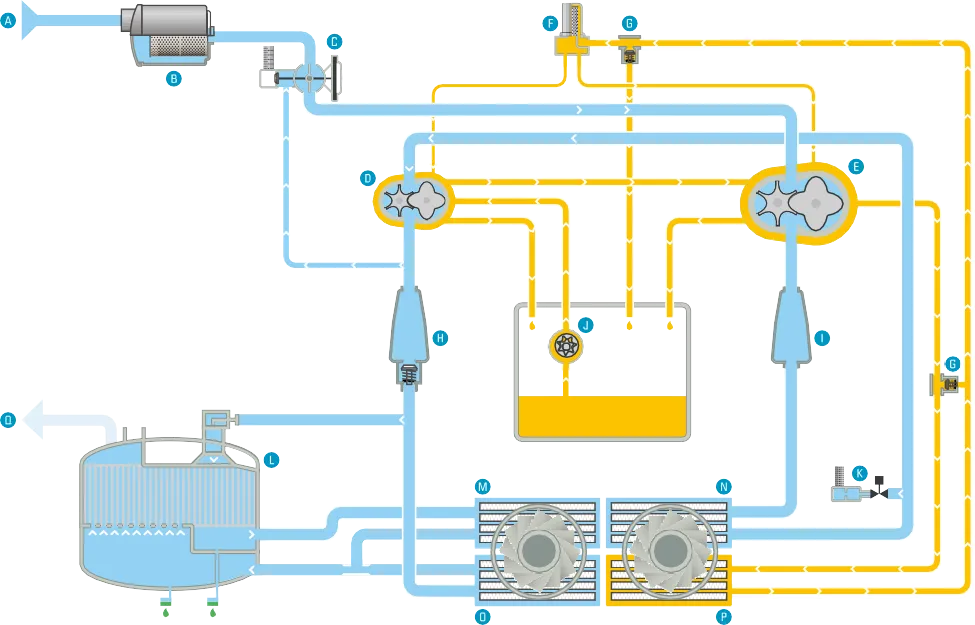

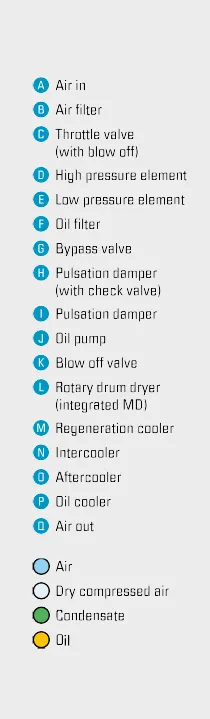

 ZT 90 – 160 (VSD) FF Flowchart

Technical specifications

ZT 90-160 (FF) Technical specifications

(1)For the FF variant, please consult Atlas Copco.
(2)Unit performance measured according to ISO 1217, Annex C, Edition 4 (2009) Reference conditions:
-Relative humidity 0%.
-Absolute inlet pressure 1 bar (14.5 psi).
-Intake air temperature 20°C (68°F).
Free Air Delivery (FAD) is measured at the following working pressures:
-7,5 / 8,6 bar version at 7 bar.
-10,4 bar version at 9 bar.
(3)A-weighted emission sound pressure level at the work station (LpWSAd).
Measured according to ISO 2151: 2008 using ISO 9614-2 (sound intensity scanning method). The added correction factor (+/- 3 dB(A)) is the total uncertainty value (KpAd) conform with the test code.

ZT 90-160 (FF) Dimensions

ZT 90-160 VSD (FF) Technical specifications

(1)For the FF variant, please consult Atlas Copco.
(2)Unit performance measured according to ISO 1217, Annex C & E, Edition 4 (2009) Reference conditions:
-Absolute inlet pressure 1 bar (14.5 psi)
-Intake air temperature 20°C (68°F)
Free Air Delivery (FAD) is measured at maximum working pressure.
(3)A-weighted emission sound pressure level at the work station (LpWSAd).
Measured according to ISO 2151: 2008 using ISO 9614-2 (sound intensity scanning method). The added correction factor (+/- 3 dB(A)) is the total uncertainty value (KpAd) conform with the test code.

ZT 90-160 VSD (FF) Dimensions

Atlas Copco ZT 90–160 VSD (FF) Oil-free Air Compressors Brochure

If you need Atlas Copco ZT 90–160 VSD (FF) Oil-free Air Compressors brochure, please click the link below to view or download it.

ATLAS COPCO ZT 90-160 (FF) & ZT 90-160 VSD (FF)_EN
