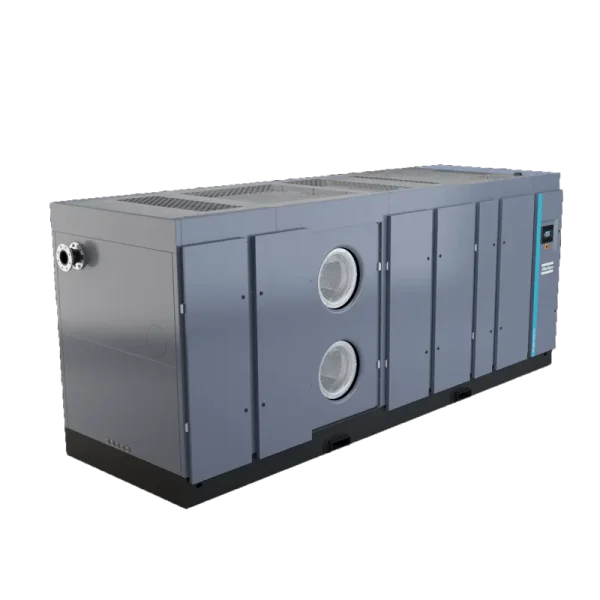

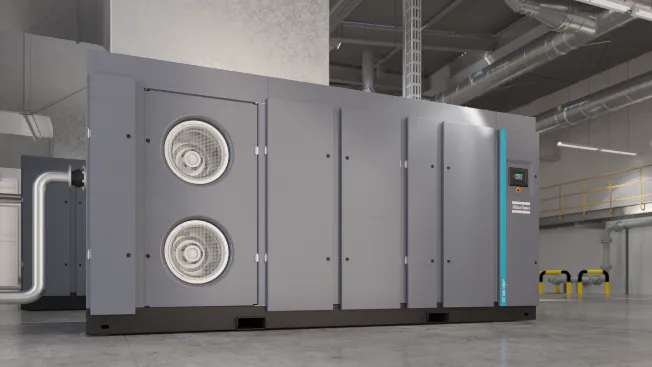

Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors
$20,000.00
Introducing the The Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors (ZT 200 VSD⁺, ZT 250 VSD⁺, ZT 315 VSD⁺, ZT 355 VSD⁺), where efficiency meets reliability and sustainability. This air compressor is designed for industries demanding high compressed air quality standards.
Introducing the The Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors (ZT 200 VSD⁺, ZT 250 VSD⁺, ZT 315 VSD⁺, ZT 355 VSD⁺), where efficiency meets reliability and sustainability. This air compressor is designed for industries demanding high compressed air quality standards.
Contents
Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors View
The shortest route to superior productivity is to minimize operational cost while maintaining an uninterrupted supply of the right quality of air. The Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors (ZT 200 VSD⁺, ZT 250 VSD⁺, ZT 315 VSD⁺, ZT 355 VSD⁺) are focused on effectively saving energy, ensuring product safety – only oil-free machines exclude contamination risks 100% – and guaranteeing the utmost reliability around the clock. And not just today, but day after day, year after year, with minimal maintenance cost, few service interventions and long overhaul intervals.

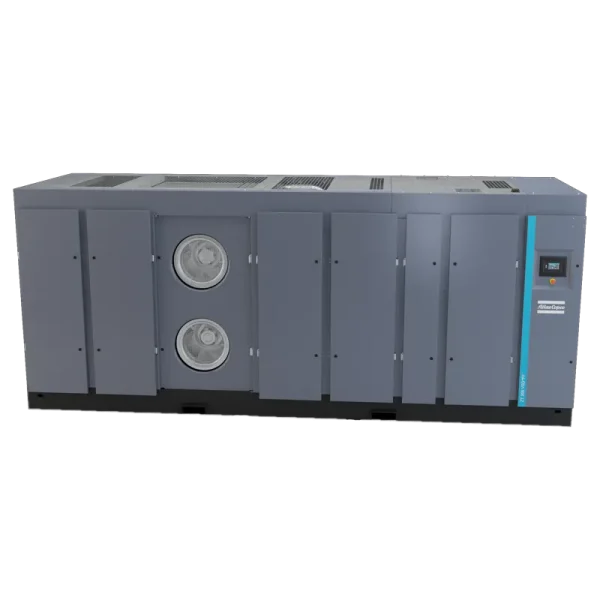

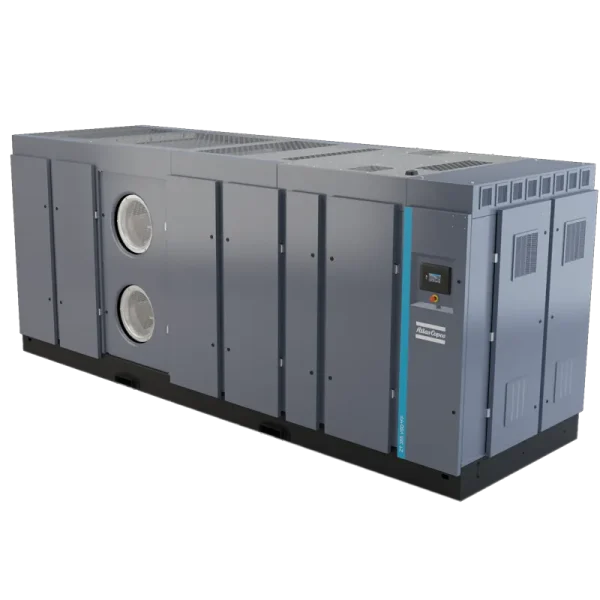

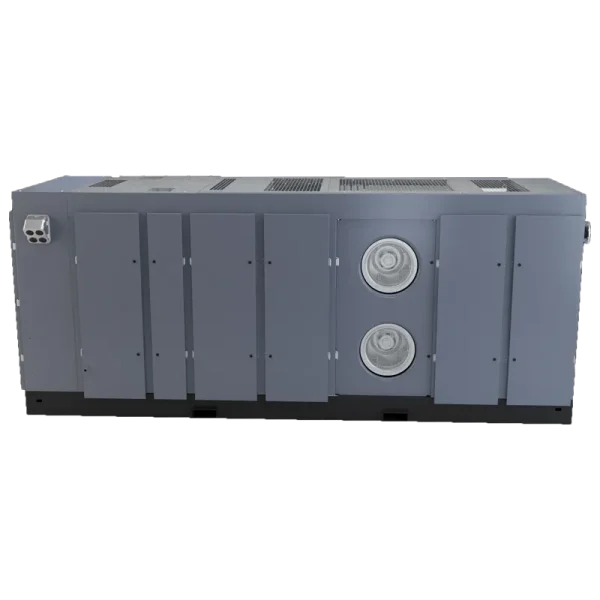

ZT 200-355 VSD⁺ FF (iMD)

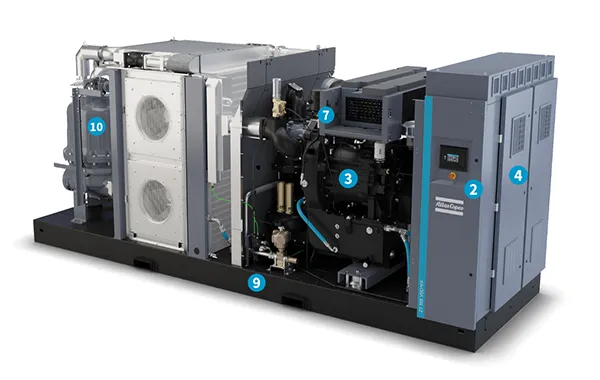

 ZT 200-355 VSD⁺ FF (iMD) LEFT VIEW |

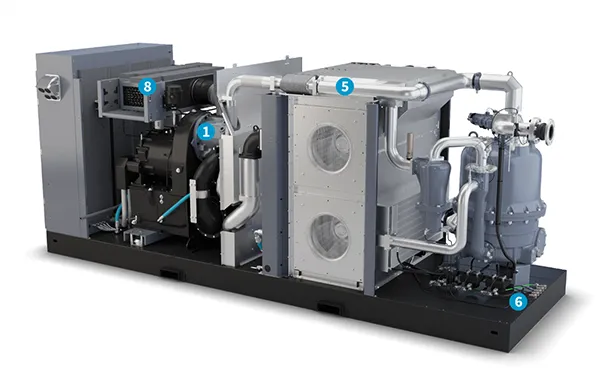

 ZT 200-355 VSD⁺ FF (iMD) RIGHT VIEW |
| ①High performance elements ●Next generation world class compression element. ●Atlas Copco superior rotor coating for high durability. ●Thermal efficiency reduces the expansion leading to reduced wear and increased reliability. ●More compact, improved rotor profiles and cooling jackets for maximum durability. |
⑥Zero loss drains ●Clearance of all water & contamination. ●Increasing both product & system reliability. |
| ②Advanced touch screen monitoring system ●User-friendly Elektronikon® Touch, with enhanced connectivity potential. ●Included warning indications, maintenance scheduling and online visualization of the machine’s condition for increased reliability. |
⑦Easy access ●Easy access to all components to minimize maintenance times. ●Hinged doors for easy routine maintenance eg. cleaning. ●Saves valuable and often expensive floor space in a facility. ●Highest ratio flow/footprint on the market. |
| ③Efficient motor ●Permanent Magnet water cooled motor with oil lubricated bearings. ●Rock-solid reliability prevents dust and water entering the motor. |
⑧Easy access ●Easy access to all components to minimize maintenance times. ●Hinged doors for easy routine maintenance eg. cleaning. ●Saves valuable and often expensive floor space in a facility. ●Highest ratio flow/footprint on the market. |
| ④NEOS drive ●Atlas Copco NEOS inverter is designed to work in the harsh conditions of the compressor house. ●Modular design allows replacement of individual components, reducing maintenance cost. ●The cubicle keeps the inverter cool extending the lifetime & increasing operational efficiency. |
⑨Grouped service items ●Minimal service time because service parts are grouped together for ease of access. ●All components are designed for serviceability and long lasting lifetime. |
| ⑤Reliable cooling ●Coolers with highly efficient water separator for higher reliability ●Stainless steel precooler to protect aftercooler from heat loads ●Stress-free connections ●Compact integrated design resulting in low pressure drop ●High efficiency radial fans and Aluminium brazed heat exchanger lead to low cooler approach temperatures |
⑩Integrated dryer ●Having an integrated dryer helps for easier installation, less pressure drop because of more efficient connections ●On top of that it also saves a lot of space in your compressor room. |

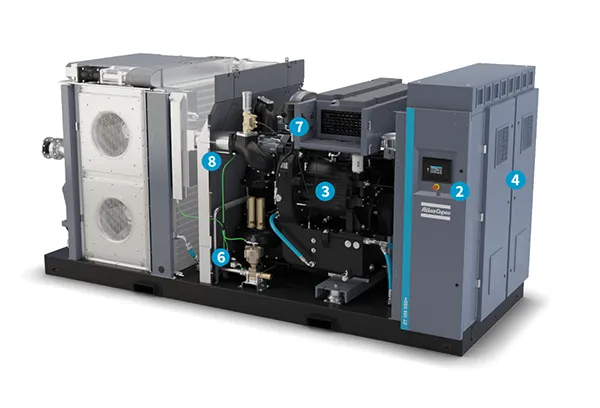

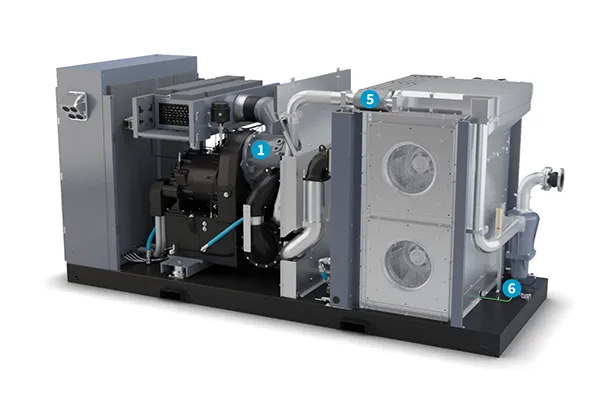

ZT 200-355 VSD⁺ Pack
|
|
 |
| ①High performance elements ●Next generation world class compression element. ●Atlas Copco superior rotor coating for high durability. ●Thermal efficiency reduces the expansion leading to reduced wear and increased reliability. ●More compact, improved rotor profiles and cooling jackets for maximum durability. |
⑥Zero loss drains ●Clearance of all water & contamination. ●Increasing both product & system reliability. |
| ②Advanced touch screen monitoring system ●User-friendly Elektronikon® Touch, with enhanced connectivity potential. ●Included warning indications, maintenance scheduling and online visualization of the machine’s condition for increased reliability. |
⑦Easy access ●Easy access to all components to minimize maintenance times. ●Hinged doors for easy routine maintenance eg. cleaning. ●Saves valuable and often expensive floor space in a facility. ●Highest ratio flow/footprint on the market. |
| ③Efficient motor ●Permanent Magnet water cooled motor with oil lubricated bearings. ●Rock-solid reliability prevents dust and water entering the motor. |
⑧Soundproof design ●Silenced canopy ensures optimal working conditions for everyone in the immediate environment. ●Optimized internal ducting and integrated pulsation damper to reduce the noise level. ●High quality coated canopy to prevent dust. |
| ④NEOS drive ●Atlas Copco NEOS inverter is designed to work in the harsh conditions of the compressor house. ●Modular design allows replacement of individual components, reducing maintenance cost. ●The cubicle keeps the inverter cool extending the lifetime & increasing operational efficiency. |
⑨Grouped service items ●Minimal service time because service parts are grouped together for ease of access. ●All components are designed for serviceability and long lasting lifetime. |
| ⑤Reliable cooling ●Coolers with highly efficient water separator for higher reliability ●Stainless steel precooler to protect aftercooler from heat loads ●Stress-free connections ●Compact integrated design resulting in low pressure drop ●High efficiency radial fans and Aluminium brazed heat exchanger lead to low cooler approach temperatures |
Optimum air quality
By using our compressors and air treatment equipment you will avoid dust, water or oil in your process. It’s important to have the right air quality to maximize your efficiency. If the air quality is too low, you will reduce the reliability of production equipment or processes. If the air quality is too high you’re wasting energy. Therefore it’s crucial to have the right air quality for your needs.
 |

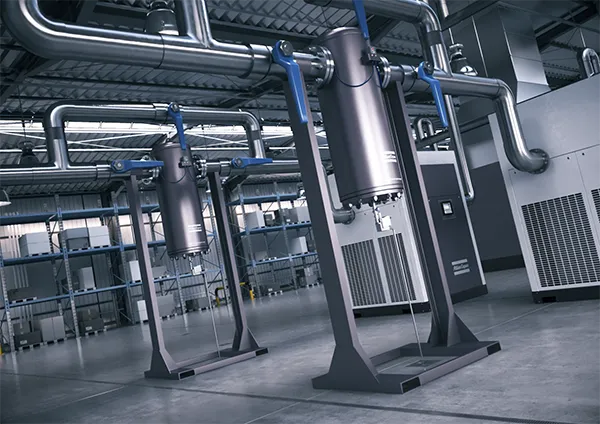

The perfect installation for your requirements
You have to avoid 3 things: water, dust & oil contaminants. Water Dust Oil |
| Which air quality do you require?
CLASS 0 = As specified by the equipment user or supplier and more stringent than class 1 Current ISO 8573-1 (2010) classes (the five main classes and the associated maximum concentration in total oil content). Concentration total oil (aerosol, liquid, vapor) mg/m³. Contact your local Atlas Copco representative to decide the right air quality for your application needs. |
 |
Optimize your system
With the ZT 200-355 VSD+ , Atlas Copco provides an all-in-one standard package incorporating the latest technology -in a built-to-last design. To further optimize your ZT’s performance or to simply tailor it to your specific production environment, optional features are available.
| ZT 200-355 VSD⁺ | |
| Anchor pads | • |
| Energy recovery | not applicable |
| Silicone-free rotor | • |
| High ambient temperature version | • |
| Kit for purge of dry air during standstill | • |
| IT network | • |
| Wooden case protection packaging | • |
| Test certificate | • |
| Witnessed performance test | • |

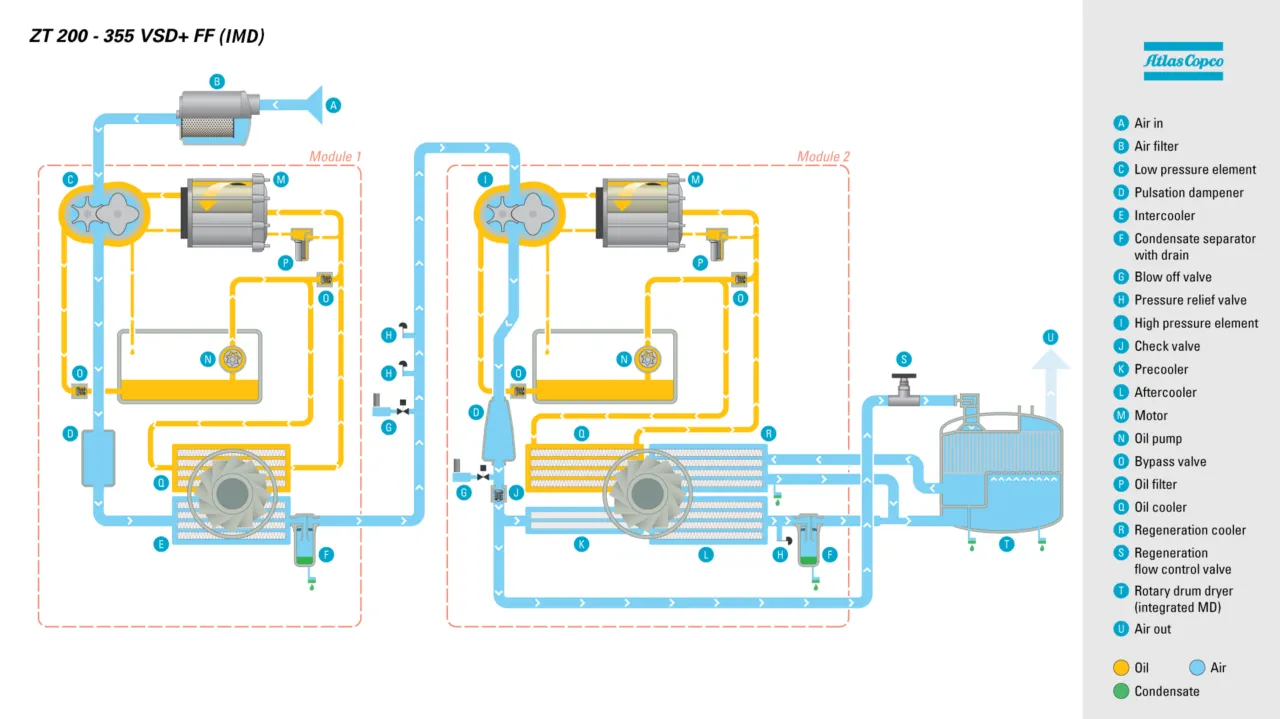

Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors Flowchart
| Filtration & 1st stage compression
The air is drawn into the compressor through the inlet filter where it is cleaned. Then, it continues to the first compression stage. There, it is compressed to an intermediate pressure. |
Integrated dryer
The flow to regeneration side of the dryer can be controlled through the flow control valve present in the circuit. In the regeneration area of the dryer, the hot air regenerates the adsorption drum after which it passes through the regeneration cooler where it is cooled down and moisture is separated and evacuated. The cold air coming from the regeneration section is then mixed with the cold air from the aftercooler in the nozzle before passing through the drying section of the adsorption drum where the moisture is removed. Dry air leaves the compressor through the outlet connection flange. |
| Cooling – 1st stage
The compressed air flows through the pulsation dampener to the intercooler. It is cooled down there. After the intercooler, it passes through a moisture separation system with automated drains to remove the condensate before entering the high-pressure stage. The blow off valve and two pressure relief valves located after the moisture separator. They safeguard the system from accidents. |
Oil
The yellow flow is the oil path within the compressor where the oil pump sucks oil from the oil sump and pumps it through the oil cooler. The cooled oil from oil cooler splits into two flows. The first oil flow line is directed towards motor jacket and element jacket to remove heat from both the motors and elements. The second flow line moves through a high efficiency filter to give cool and clean oil to the gears for lubrication. Then, the oil flows back to the oil sump. The oil bypass valves present in the oil circuit protect the oil filter from high oil pressure and make sure sufficient oil pressure is maintained in the oil circuit. |
| 2nd stage compression
After the intercooler, the air is compressed in the high-pressure stage to the final pressure. The high pressure compressed air then flows through pulsation dampener and check valve. |
Cooling – 2nd stage
For a machine without integrated dryer, compressed air flows through precooler and aftercooler where it is cooled. Then, it moves to the outlet of the machine. For a machine with an integrated dryer, the compressor air flow splits into two parts. Approximately 60% of the first flow goes through precooler and aftercooler where it is cooled down. There, moisture is separated and evacuated. The second part goes directly to the regeneration area of the heat of compression MD dryer. |
Technical specifications
ZT 200-355 VSD⁺ Pack Specifications
| Model | Working pressure | FAD | Installed power | Motor Specifications | Noise level | Weight | ||
| bar(e) | l/s | m³/min | kW | db(A) | kg | |||
| ZT 200 VSD+ 10.4 | Minimum | 4 | 187 – 662 | 11 – 40 | 200 | 2 x 100 | 78 | 6560 |
| Effective | 7 | 186 – 622 | 11 – 37 | |||||
| Maximum | 10.4 | 181 – 481 | 11 – 29 | |||||
| ZT 250 VSD+ 10.4 | Minimum | 4 | 187 – 812 | 11 – 49 | 250 | 2 x 125 | ||
| Effective | 7 | 186 – 770 | 11 – 46 | |||||
| Maximum | 10.4 | 181 – 621 | 11 – 37 | |||||
| ZT 315 VSD+ 10.4 | Minimum | 4 | 187 – 948 | 11 – 57 | 315 | 2 x 160 | ||
| Effective | 7 | 186 – 946 | ||||||
| Maximum | 10.4 | 181 – 796 | 11 – 48 | |||||
| ZT 355 VSD+ 8.6 | Minimum | 4 | 188 – 1050 | 11 – 63 | 355 | 2 x 180 | ||
| Effective | 7 | 186 – 1048 | ||||||
| Maximum | 8.6 | 184 – 976 | 11 – 59 | |||||
| ZT 355 VSD+ 10.4 | Minimum | 4 | 187 – 978 | |||||
| Effective | 7 | 186 – 978 | ||||||
| Maximum | 10.4 | 181 – 895 | 11 – 54 | |||||
ZT 200-355 VSD⁺ Pack Dimensions
| Model | Length | Width | Height |
| mm | |||
| ZT 200-355 VSD+ | 4417 | 1754 | 2150 |
(1)Unit performance measured according to ISO 1217, Annex E, Edition 4 (2009).
Reference conditions:
–Relative humidity 0%
–Absolute inlet pressure 1 bar (14.5 psi)
–Intake air temperature 20°C (68°F)
Free Air Delivery (FAD) is measured at effective working pressure.
(2)A-weighted emission sound pressure level at the work station (LpWSAd). Measured according to ISO 2151:2008 using ISO 9614-2 (sound intensity scanning method). The added correction factor (+/- 3 db(A)) is the total uncertainty value (KpAd) conform with the test code.
Specifications ZT 200-355 VSD⁺ FF (iMD) Specifications
| Model | Working pressure | FAD | Installed power | Motor specifications | Noise level db(A) | Weight | ||
| bar(e) | l/s | m³/min | kW | kg | ||||
| ZT 200 VSD+ 10.4 | Minimum | 6 | 211 – 649 | 13 – 39 | 200 | 2 x 100 | 78 | 7792 |
| Effective | 7 | 210 – 611 | 13 – 37 | |||||
| Maximum | 10.4 | 204 – 477 | 12 – 29 | |||||
| ZT 250 VSD+ 10.4 | Minimum | 6 | 258 – 794 | 15 – 48 | 250 | 2 x 125 | ||
| Effective | 7 | 256 – 756 | 15 – 45 | |||||
| Maximum | 10.4 | 249 – 619 | 15 – 37 | |||||
| ZT 315 VSD+ 10.4 | Minimum | 6 | 300 – 922 | 18 – 55 | 315 | 2 x 160 | 7900 | |
| Effective | 7 | 298 – 920 | ||||||
| Maximum | 10.4 | 289 – 793 | 17 – 48 | |||||
| ZT 355 VSD+ 8.6 | Minimum | 6 | 332 – 1018 | 20 – 61 | 355 | 2 x 180 | ||
| Effective | 7 | 330 – 1015 | ||||||
| Maximum | 8.6 | 326 – 957 | 20 – 57 | |||||
| ZT 355 VSD+ 10.4 | Minimum | 6 | 313 – 959 | 19 – 58 | ||||
| Effective | 7 | 311 – 959 | ||||||
| Maximum | 10.4 | 302 – 890 | 18 – 53 | |||||
ZT 200-355 VSD⁺ FF (iMD) Dimensions
| Model | Length | Width | Height |
| mm | |||
| ZT 200-355 VSD+ FF (iMD) | 5348 | 1754 | 2200 |
(1)Unit performance measured according to ISO 1217, Annex E, Edition 4 (2009).
Reference conditions:
–Relative humidity 0%
–Absolute inlet pressure 1 bar (14.5 psi)
–Intake air temperature 20°C (68°F)
Free Air Delivery (FAD) is measured at effective working pressure.
(2)A-weighted emission sound pressure level at the work station (LpWSAd). Measured according to ISO 2151:2008 using ISO 9614-2 (sound intensity scanning method). The added correction factor (+/- 3 db(A)) is the total uncertainty value (KpAd) conform with the test code.
Brochure
If you need Atlas Copco ZT 200-355 VSD⁺ Oil-free Air Compressors brochure, please click the link below to view or download it.
| Weight | 6560 kg |
|---|---|
| Dimensions | 534.8 × 175.4 × 220 cm |
| 1-9 Pcs | $20000.00 |
| ≥10 Pcs | $15000.00 |
| Certificate | ISO 8573-1 CLASS 0 |
| Country of Origin | CN |
| Delivery Time | 60-90 Days |
| MOQ | 1 Piece |
| Packing | Wooden Crate |
| Product Quality | Brand-New Original |
| Transaction Mode | CFR, CIF, DAP, DDP, DPU, EXW, FCA, FOB |
