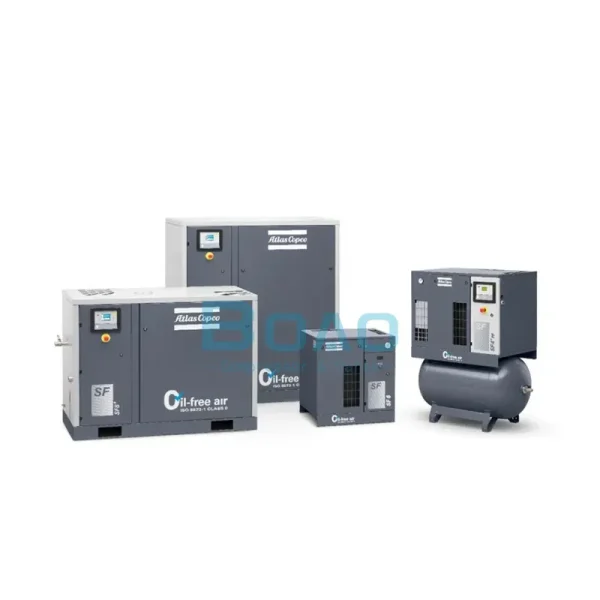

Atlas Copco SF⁺ 8-22 Oil-free Scroll Air Compressors
$5,000.00

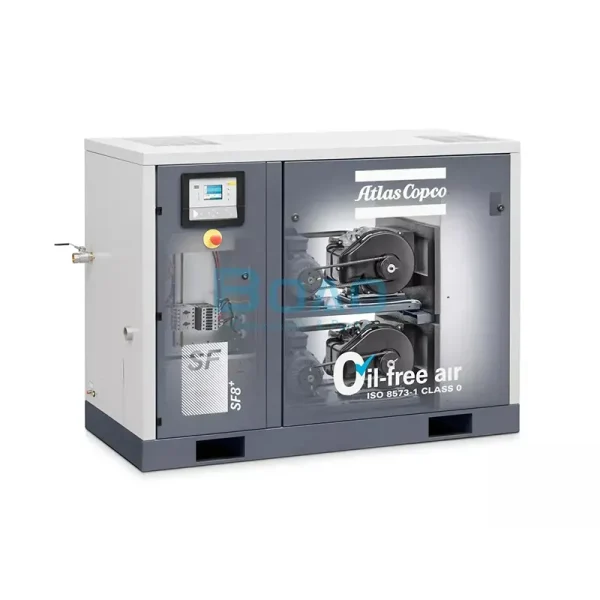

Atlas Copco SF⁺ 8-22 Oil-free Scroll Air Compressors (SF8⁺ SF11⁺ SF15⁺ SF17⁺ SF22⁺) bring the benefits and flexibility of a modular system, utilizing two to four compressor modules integrated into one canopy.
Atlas Copco SF⁺ 8-22 Oil-free Scroll Air Compressors (SF8⁺ SF11⁺ SF15⁺ SF17⁺ SF22⁺) bring the benefits and flexibility of a modular system, utilizing two to four compressor modules integrated into one canopy. The Elektronikon Touch controller continuously monitors the status of each element and starts and stops them to ensure that the output matches the air demand. Moreover, the perfect air quality and user- friendliness of these units guarantee a superior production process.
Contents

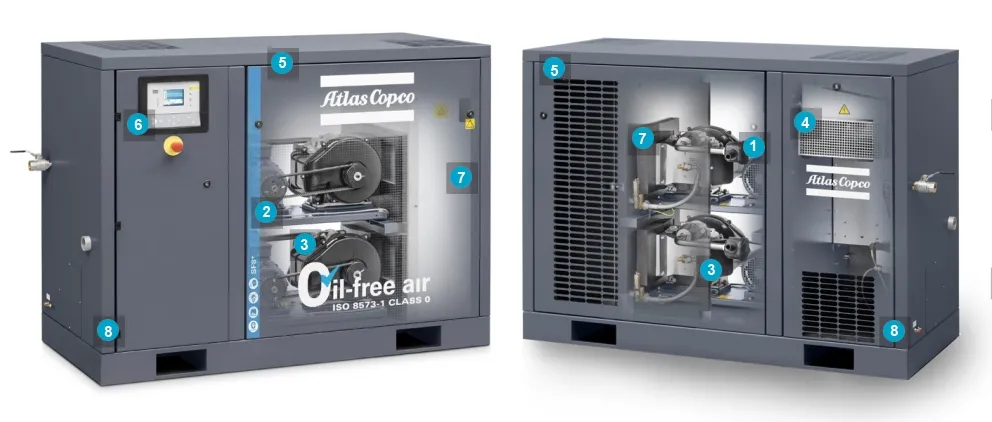

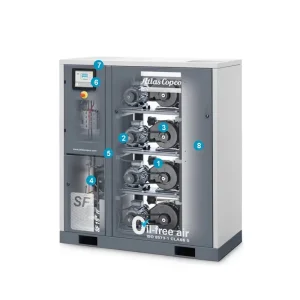

Atlas Copco SF⁺ 8-22 Oil-free Scroll Air Compressors Modular & Flexible
| ①.Air inlet filter High-efficiency paper cartridge air inlet filter eliminates dust and particles down to 1 μm. |
②.IP55 Class F IE3 motor Totally enclosed and air-cooled IP55 Class F motors comply with IE3 Premium Efficiency standards. |
| ③.High-efficiency scroll element Air-cooled scroll compressor element offers proven durability and reliability in operation, in addition to solid efficiency |
④Integrated dryer Compact integrated refrigerant dryer ensures air quality and prevents rust and corrosion in your compressed air network. |
| ⑤.Silent canopy Thanks to the low-noise scroll element, optimized super-silent fan and sound- insulated canopy, best-in-class noise levels can be achieved. |
⑥.Elektronikon controller •High-tech controller with warning indications, compressor shutdown and maintenance scheduling. •Easy to use and designed to perform in the toughest conditions. •Standard SMARTLINK remote monitoring to maximize air system performance and energy savings. |
| ⑦.Optimized cooler & piping The air cooler is finetuned for improved performance, while the aluminum and stainless steel pipes improve reliability and assure the quality of compressed air. |
⑧.Smart design Outstanding user-friendly design with safe operation and easy service. |
Optimize Atlas Copco SF⁺ 8-22 Oil-free Scroll Air Compressors
Some applications may need or may benefit from additional features and more refined control/ air treatment systems. To meet these needs, Atlas Copco has developed optional parts and easily integrated compatible equipment.
| SF+ 8-11 | SF+ 15-22 | |
| Extra module upgrade SF+ 8-15 | • | – |
| EQ4i central compressor control | • | • |
| EQ6i central compressor control | • | • |
| Test report | • | • |
| Electronic water drain (Pack units only) | • | • |
| Main switch | • | • |
• Optional – Not available
Technical specifications
| TYPE | Max. working | pressure | Capacity FAD* | Installed motor power | Noise level** |
Wei g ht | ||||
| bar(e) | psig | l/s | m3/min | cfm | kW | hp | dB(A) | kg | lbs | |
| SF 8+-22+ (50/60 Hz) | ||||||||||

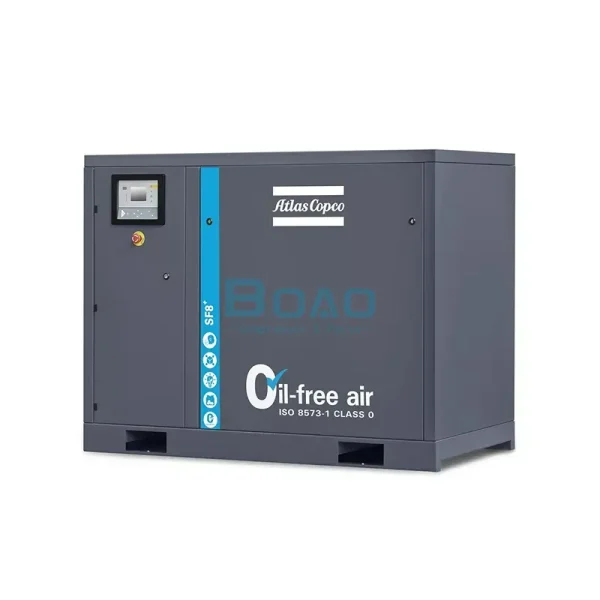

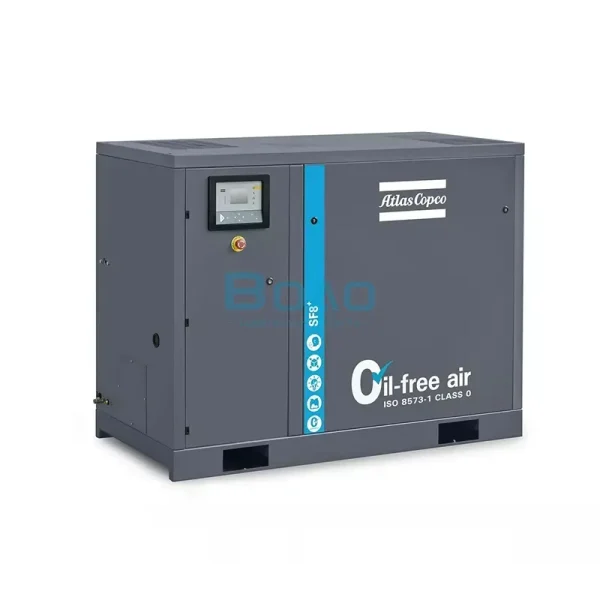

| SF 8⁺ | 8 | 116 | 13.4 | 0.80 | 28.4 | 8 | 10 | 63 | 372 | 820 |
| 10 | 145 | 11.4 | 0.68 | 24.2 | 8 | 10 | 63 | 372 | 820 | |
| SF 11⁺ | 8 | 116 | 20.3 | 1.22 | 43.0 | 11 | 15 | 63 | 418 | 921 |
| 10 | 145 | 15.0 | 0.90 | 31.8 | 11 | 15 | 63 | 418 | 921 | |

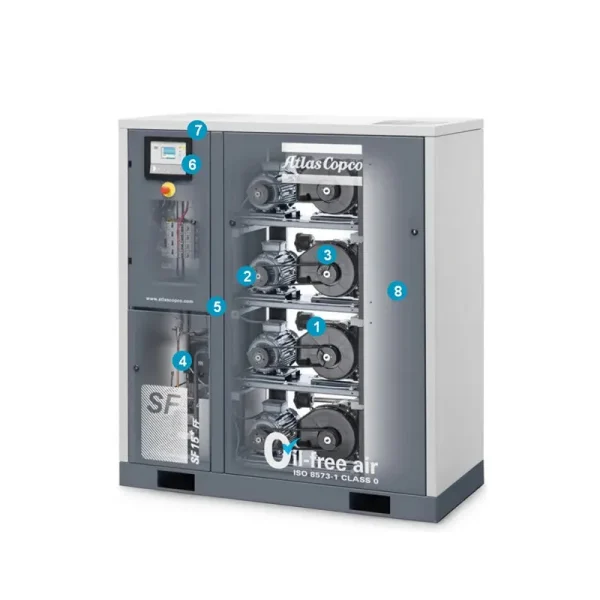

| SF 15⁺ | 8 | 116 | 27.1 | 1.63 | 574 | 15 | 20 | 63 | 580 | 1278 |
| 10 | 145 | 23.0 | 1.38 | 48.7 | 15 | 20 | 63 | 580 | 1278 | |
| SF 17⁺ | 8 | 116 | 31.1 | 1.87 | 65.9 | 17 | 22 | 64 | 573 | 1263 |
| 10 | 145 | 23.7 | 1.42 | 50.2 | 17 | 22 | 64 | 573 | 1263 | |
| SF 22⁺ | 8 | 116 | 40.8 | 2.45 | 86.5 | 22 | 30 | 65 | 687 | 1514 |
| 10 | 145 | 30.0 | 1.80 | 63.6 | 22 | 30 | 65 | 687 | 1514 | |
| SFD 11+-22+(50/60 Hz) | ||||||||||
| SFD 11⁺ | 8 | 116 | 9.8 | 0.59 | 20.8 | 11 | 15 | 63 | 450 | 992 |
| 10 | 145 | 76 | 0.46 | 16.1 | 11 | 15 | 63 | 450 | 992 | |
| SFD 15⁺ | 8 | 116 | 13.4 | 0.80 | 28.4 | 15 | 20 | 64 | 625 | 1378 |
| 10 | 145 | 11.4 | 0.68 | 24.2 | 15 | 20 | 64 | 625 | 1378 | |
| SFD 22⁺ | 8 | 116 | 20.3 | 1.22 | 43.0 | 22 | 30 | 65 | 725 | 1598 |
| 10 | 145 | 15.0 | 0.90 | 31.8 | 22 | 30 | 65 | 725 | 1598 | |
* Unit performance measured according to ISO 1217, Annex C, Latest Edition.
** Mean noise level measured at a distance of 1 m according to ISO 2151, tolerance 3 dB(a). Weights of the pack & floor-mounted units are shown in the chart.
Dimensions
|
Pack/Full Feature |
||||||
| L (mm) | W (mm) | H (mm) | L (in) | W (in) | H (in) | |
| SF+ 8-11 LC* Pack & Full Feature | 1630 | 750 | 1230 | 64.2 | 29.5 | 48.4 |
| SF+ 8-11 HC* Pack & Full Feature | 1630 | 750 | 1840 | 64.2 | 29.5 | 72.4 |
| SF+ 15-22 Pack & Full Feature | 1630 | 750 | 1840 | 64.2 | 29.5 | 72.4 |
LC= low canopy; HC= high canopy.
Brochure
If you need Atlas Copco SF+ 8-22 Oil-free Scroll Air Compressors brochure, please click the link below to view or download it.
| Weight | 600000 kg |
|---|---|
| Dimensions | 1630 × 750 × 1840 cm |
| 1-9 Pcs | $5000.00 |
| ≥10 Pcs | $10000.00 |
| Country of Origin | CN |
| Delivery Time | 60-90 Days |
| MOQ | 1 Piece |
| Packing | Wooden Crate |
| Product Quality | Brand-New Original |
| Transaction Mode | CFR, CIF, DAP, DDP, DPU, EXW, FCA, FOB |
Mike –
BOAO's service was outstanding！

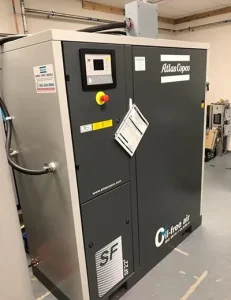

We purchased the Atlas Copco SF 22⁺ compressor from BOAO for our laboratory where 100% oil-free air is critical. The performance has been flawless—it delivers perfectly clean air with remarkable energy efficiency, noticeably reducing our operating costs. The unit is incredibly quiet and compact, saving valuable space. BOAO’s service was outstanding, with expert advice pre-sale and prompt delivery. This compressor is a premium product worth every penny for its reliability and purity. Highly recommend both this exceptional machine and BOAO as a top-tier supplier!
