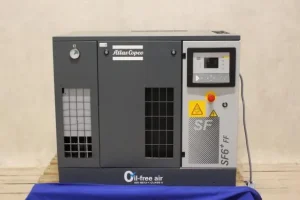

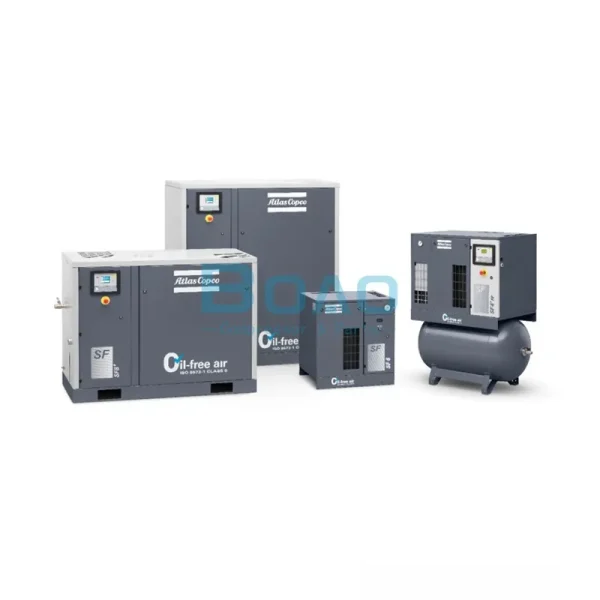

Atlas Copco SF⁺ 1-6 Oil-free Scroll Air Compressors
$20,000.00
The Atlas Copco SF⁺ 1-6 oil-free scroll air compressors (SF1⁺ SF2⁺ SF4⁺ SF6⁺) meets your demands with innovative technologies and supreme energy efficiency.
Clean compressed air is a prerequisite for many manufacturing processes. Atlas Copco oil-free air compressors prevent oil from entering your compressed air system. The Atlas Copco SF⁺ 1-6 oil-free scroll air compressors (SF1⁺ SF2⁺ SF4⁺ SF6⁺) combines Atlas Copco’s vast experience and knowledge in an industry-leading package. Reliable, quiet and compact, it meets your demands with innovative technologies and supreme energy efficiency.
Contents
SF⁺ 1-6 Efficient, silent & compact
• High-quality, oil-free air.
• IE3 Premium Efficiency motors.
• Extremely quiet: sound levels from 52 dB(a).
• SMARTLINK real-time, remote monitoring and optimization

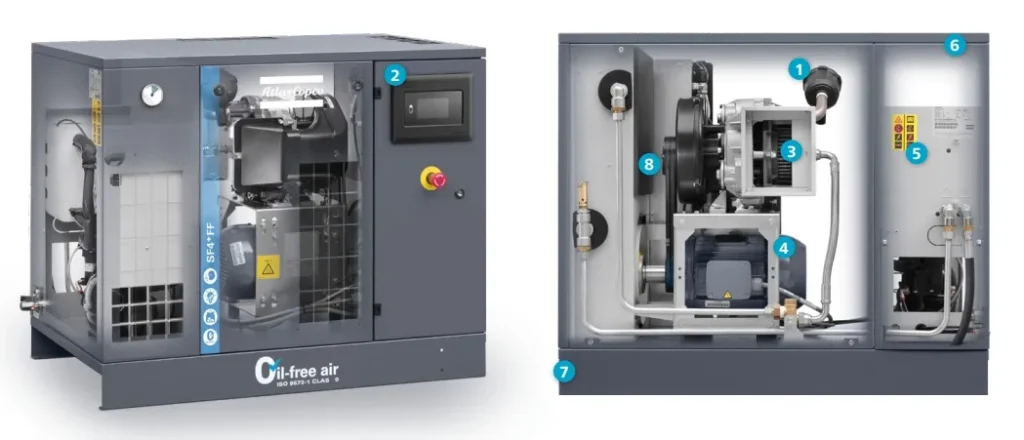

Atlas Copco SF⁺ 1-6 Oil-free Scroll Air Compressors Components

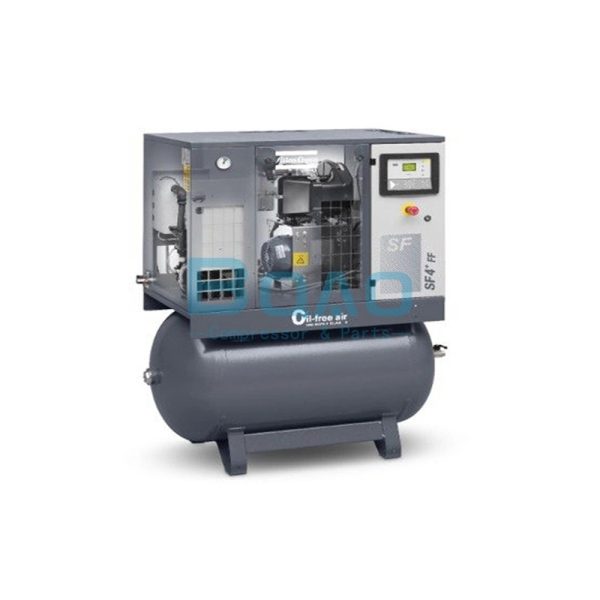

The SF⁺ 1-6 is a complete package that includes an element, drive motor and aftercooler in a super-silent acoustic enclosure that can be installed directly onto your work floor. It is also available as a Full Feature unit with integrated refrigerant air dryer. Three receiver mounting options are available: with an extended canopy that includes three integrated 10-liter galvanized air receivers or mounted on an internally-coated 270-liter (72-gallon) or 500-liter (132-gallon) horizontal receiver.
| ①.Air inlet filter High-efficiency paper cartridge air inlet filter eliminates dust and particles down to 1 μm. |
②.Elektronikon Touch controller • High-tech controller with warning indications, compressor shutdown and maintenance scheduling. • Easy to use and designed to perform in the toughest conditions. • Standard SMARTLINK remote monitoring to maximize air system performance and energy savings. |
| ③.High-efficiency scroll element Air-cooled scroll compressor element offers proven durability and reliability in operation, in addition to solid efficiency |
④.IP55 Class F/IE3 motor Totally enclosed air-cooled IP55 Class F motors comply with IE3 Premium Efficiency standards. |
| ⑤.Built-in dryer Compact and optimized integrated refrigerant dryer ensures air quality and prevents rust and corrosion in your compressed air network. |
⑥.Silent canopy A sound-insulated canopy makes noise levels as low as 52 dB(A) possible, allowing you to install the unit closer to the point of use. |
| ⑦.Integrated receiver Plug-and-play solution, lower installation costs with 30l, 270l and 500l tank mounted options. |
⑧.Innovative design The new compact vertical setup enables easy access for maintenance, improves cooling to allow for lower working temperatures, and provides vibration damping |
| ⑨.Cooler & piping • An oversized cooler improves the performance of the unit. • The use of stainless steel pipes and the vertically oversized check valve improve reliability and assure the quality of your compressed air. |
Optimize your system
Some applications may need or may benefit from additional features and more refined control/air treatment systems. To meet these needs, Atlas Copco has developed optional parts and easily integrated compatible equipment.
Atlas Copco SF⁺ 1-6 Oil-free Scroll Air Compressors
• CD adsorption dryer (only for FF TM variants)
• Phase Sequence Relay
• Prefiltration kit
• EQ4i central compressor control
• EQ6i central compressor control
• Integrated 30l air receiver + timer drain
• 270l air receiver
• 500l air receiver
• Timer drain on air receiver (only for tank-mounted variants)
• WSD water separator drain (only for Pack FM variants)
Technical specifications SF⁺ 1-6
| TYPE | Max. working | pressure | Capacity FAD* | Installed motor power | Noise | Weight | ||||
| level** | ||||||||||
| bar(e) | psig | l/s | m3/min | cfm | kW | hp | dB(A) | kg | lbs | |
| SF 1⁺ | 8 | 116 | 2.9 | 0.17 | 6.1 | 1.5 | 2 | 53 | 120 | 265 |
| 10 | 145 | 1.9 | 0.11 | 4 | 1.5 | 2 | 53 | 120 | 265 | |
| SF 2⁺ | 8 | 116 | 4.2 | 0.25 | 8.9 | 2.2 | 3 | 55 | 125 | 276 |
| 10 | 145 | 3.4 | 0.2 | 7.2 | 2.2 | 3 | 55 | 125 | 276 | |
| SF 4⁺ | 8 | 116 | 6.7 | 0.4 | 14.2 | 3.7 | 5 | 57 | 133 | 293 |
| 10 | 145 | 5.9 | 0.35 | 12.5 | 3.7 | 5 | 57 | 133 | 293 | |
| SF 6⁺ | 8 | 116 | 9.8 | 0.59 | 20.8 | 5.5 | 75 | 59 | 157 | 346 |
| 10 | 145 | 7.6 | 0.46 | 16.1 | 5.5 | Z5 | 59 | 157 | 346 | |
* Unit performance measured according to ISO 1217, Annex C, Latest Edition.
** Mean noise level measured at a distance of 1 m according to ISO 2151, tolerance 3 dB(a).
Weights of the pack & floor-mounted units are shown in the chart.
Dimensions SF⁺ 1-6
|
Pack/Full Feature |
||||||
| L (mm) | W (mm) | H (mm) | L (in) | W (in) | H (in) | |
| Pack & floor-mounted | 760 | 670 | 840 | 29.9 | 26.3 | 33.1 |
| Full Feature & floor-mounted | 1025 | 670 | 840 | 40.3 | 26.3 | 33.1 |
| Pack & 270l receiver | 1275 | 670 | 1450 | 50.2 | 26.3 | 57.1 |
| Full Feature & 270l receiver | 1275 | 670 | 1450 | 50.2 | 26.3 | 57.1 |
Brochure
If you need Atlas Copco SF⁺ 1-6 Oil-free Scroll Air Compressors brochure, please click the link below to view or download it.
| Weight | 200000 kg |
|---|---|
| Dimensions | 130 × 70 × 145 cm |
| 1-9 Pcs | $30000.00 |
| ≥10 Pcs | $20000.00 |
| Certificate | ISO-9001 |
| Country of Origin | CN |
| Delivery Time | 60-90 Days |
| MOQ | 1 Piece |
| Packing | Wooden Crate |
| Product Quality | Brand-New Original |
| Transaction Mode | CFR, CIF, DAP, DDP, DPU, EXW, FCA, FOB |
