Atlas Copco GA 37-110 VSD⁺ (GA37, GA45, GA55, GA75, GA90, GA110) Oil-injected rotary screw compressors are not just a ground-breaking new compressor range, it is an operational transformation. It reduces your energy costs by 50% on average and maximizes uptime, even in the harshest conditions. Driving this next-level performance: Atlas Copco’s Variable Speed Drive, a powerful interior permanent magnet motor, and our in-house developed Neos inverter. Thanks to its compact vertical design, the GA 37-110 VSD⁺ fits in even the smallest compressor room. Including yours? Discover how the GA 37-110 VSD⁺ can transform your operational environment today.

Contents

1 Inside the robust GA 37L-75 VSD+
2 Inside the powerful GA 75L-110 VSD+
3 Technical specifications GA 37-110 VSD⁺
4 Dimensions GA 37-110 VSD⁺
5 Flow chart GA 37L-110 VSD⁺
6 Brochure
7 Inquiry Now

Inside the robust GA 37L-75 VSD+

1.Interior Permanent Magnet (iPM) motor

• Oil-cooled motor.
• Optimal cooling for all speeds and ambient conditions.
• Designed in-house in Belgium.
• Oil-lubricated motor bearing: no (re)grease(ing), increased uptime.
• IP66: pressure tight.
• Permanent magnets.

2.New compressor element

• New improved rotor profile.
• Reduced pressure losses.
• Optimized in and outlet portals.

3.Direct drive

• Vertical design, less parts.
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.

4.Inlet filter

• Heavy duty.
• Maintenance every 4,000 hours.
• Pressure drop indicator.

5.Radial fan

• Compact.
• Low noise level.
• High capacity for optimized cooling.

6.Classic cooler design

• Integrated water separation.
• Separate oil/air cooler.
• Easy access for maintenance.

7.Innovative Neos inverter

• Atlas Copco’s in-house designed
• inverter now also controls iPM motors.
• IP5x protection.
• Robust aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and
• user-friendly.

8.Integrated dryer

• Extra compact footprint.
• Refrigerant R410A.

9.Elektronikon® Touch controller

• High-tech controller with warning indications, compressor shut-down and maintenance scheduling.
• Easy to use and designed to perform in the toughest conditions.
• Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
• Optional multiple compressor control (2, 4 or 6 compressors).

10.Sentinel valve

• Optimizes the inlet flow of the air end.
• No blow-off losses.
• Full aluminum design: maintenance-free.

11.VSD+ Neos cubicle

• VSD+ is superior to idling machines.
• Electrical components remain cool, enhancing their lifetime.
• Dedicated drive for iPM technology motors.
• Heat dissipation of inverter in separate compartment.

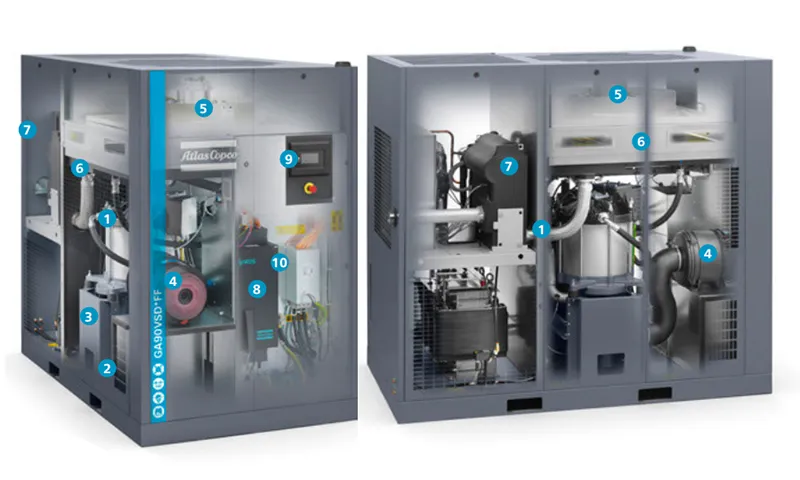

Inside the powerful GA 75L-110 VSD+

1.Interior Permanent Magnet (iPM) motor

• Compact, customized design for optimal cooling by oil.
• Designed in-house in Belgium.
• IP66 protection rating.
• No cooling air flow required.
• Oil-lubricated motor bearing:no (re)grease(ing) and increased uptime.

2.New compressor element

• Improved efficiency.
• Made by Atlas Copco.
• Robust and silent.

3.Direct drive

• Vertical design, less parts.
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.

4.Inlet filter

• Heavy duty.
• Pressure drop indicator.
• Maintenance every 4,000 hours.

5.Cooling fan

• Already compliant with future ERP2020 efficiency.
• Optimized, application-specific design results in low noise and high efficiency.
• Condensation prevention cycle based on inlet humidity sensor.

6.Classic cooler design

• Integrated water separation.
• Separate oil/air cooler.
• Easy access for maintenance.

7.Integrated dryer

• Ensures excellence in air quality.
• Incorporates optional UD+ filter to meet ISO 8573-1 Quality Class 1.4.2.
• True plug-and-play design eliminates cost of installing a separate dryer.

8.Innovative Neos inverter

• Atlas Copco’s in-house designed inverter now also controls iPM motors.
• IP5x protection.
• Robust aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and user-friendly.

9.Elektronikon® Touch controller

10.VSD+ Neos cubicle

• VSD+ is superior to idling machines.
• Electrical components remain cool, enhancing theirlifetime.
• Dedicated Neos drive for iPM technology motors.
• Heat dissipation of inverter in separate compartmen

Technical specifications GA 37-110 VSD⁺

Compressor type	Max. working pressure		Capacity FAD* (min-max)			Installed motor power		Noise level**	Weight WorkPlace	Weight WorkPlace Full Feature
Compressor type	bar(e)	psig	l/s	m³/h	cfm	kW	hp	dB(A)	kg	kg
GA37VSD****	4	58	15-116	55-419	32-246	37	50	67	376	500
	7	102	15-115	53-413	31-243	37	50	67	376	500
	9.5	138	17-102	62-368	36-216	37	50	67	376	500
	12.5	181	16-87	59-312	35-183	37	50	67	376	500
GA37LVSD+	4	58	26-133	94-479	55-282	37	50	67	860	1060
	7	102	26-132	93-475	55-279	37	50	67	860	1060
	9.5	138	25-116	89-418	53-246	37	50	67	860	1060
	12.5	181	38-99	138-355	81-209	37	50	67	860	1060
GA45VSD*	4	58	26-159	94-573	55-337	45	60	67	860	1060
	7	102	26-157	93-565	55-332	45	60	67	860	1060
	9.5	138	25-137	89-494	53-291	45	60	67	860	1060
	12.5	181	38-115	138-359	81-211	45	60	67	860	1060
GA55VSD*	4	58	26-189	93-680	55-400	55	75	67	900	1100
	7	102	26-188	94-677	55-399	55	75	67	900	1100
	9.5	138	26-166	93-598	55-352	55	75	67	900	1100
	12.5	181	40-140	145-504	85-297	55	75	67	900	1100
GA75VSD*	4	58	26-226	93-815	55-480	75	100	70	920	1120
	7	102	27-225	97-809	57-476	75	100	70	920	1120
	9.5	138	27-198	96-712	57-419	75	100	70	920	1120
	12.5	181	42-167	150-600	88-353	75	100	70	920	1120
GA75LVSD*	4	58	47-269	169-967	100-569	75	100	73	1207	1496
	7	102	48-266	172-957	101-563	75	100	73	1207	1496
	9.5	138	58-235	210-847	124-498	75	100	73	1207	1496
	12.5	181	70-194	252-699	149-411	75	100	73	1207	1496
GA90VSD*	4	58	48-311	174-1121	102-660	90	125	74	1213	1503
	7	102	49-306	176-1101	104-548	90	125	74	1213	1503
	9.5	138	60-269	215-969	127-570	90	125	74	1213	1503
	12.5	181	71-218	255-784	150-461	90	125	74	1213	1503
GA110VSD*	4	58	47-348	170-1251	100-736	110	150	76	1222	1573
	7	102	49-345	175-1241	103-731	110	150	76	1222	1573
	9.5	138	59-309	211-1111	124-554	110	150	76	1222	1573
	12.5	181	71-268	254-965	150-568	110	150	76	1222	1573

* Unit performance measured according ISO 1217 ed. 4 2009, annex E, latest edition.

** Mean noise level measured at a distance of 1 m at max. working pressure according to ISO 2151: 2004 using ISO 9614/2 (sound intensity method); tolerance 3 dB(A).

***This model is part of the GA 7-37 VSD+ range, a different series with different specifications.FAD is measured at the following effective working pressures:
– 4 bar(e)
– 7 bar(e)
– 9.5 bar(e)
– 12.5 bar(e)

Maximum working pressure:
13 bar(e) (188 psig)

Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C/68°F.

Dimensions GA 37-110 VSD⁺

Dimensions	Standard						Full Feature
Dimensions	D (mm)	W (mm)	H (mm)	D (in)	W (in)	H (in)	D (mm)	W (mm)	H (mm)	D (in)	W (in)	H (in)
GA 37 VSD+	780	811	1590	30.71	31.93	62.60	780	1273	1590	30.71	50.12	62.6
GA 37L-75 VSD+	1100	1153	1968	43.31	45.39	77.48	1100	1656	1968	43.31	65.20	77.48
GA 75L-110 VSD+	1400	1300	1968	55.12	51.18	77.48	2178	1300	1968	85.75	51.18	77.48
